Mesh Rendering

By Rapunzilla

In Tiny Glade, meshes are the 3D models that make up many built-in assets in the game, including decorations, clutter, plants, trees, stones, and other objects.

Exceptions include buildings, roofs, and some other objects that are generated procedurally.

Mesh Storage and Format

Many of Tiny Glade's built-in meshes are stored as JSON files containing arrays of points and other attributes that define their shape and behaviour. These meshes can be found in the assets/meshes folder.

Built-in meshes vs modded clutter

This page describes Tiny Glade's built-in JSON mesh format and the vertex-colour system used by many existing clutter and decoration meshes.

Tiny Glade's newer clutter modding support uses .glb files for additional clutter items distributed through the Steam Workshop. These modded clutter meshes use a different asset and material workflow, so the JSON structure, nani_meshes.ron registration, and vertex-colour details described on this page do not apply to clutter added through the official modding system.

This page remains relevant when inspecting or replacing the game's existing JSON meshes.

Managing Meshes with RON

A special file, nani_meshes.ron, lists available meshes and provides instructions for how they are loaded into the game.

This file contains attributes that control whether a mesh should be loaded or unloaded.

Info

RON is a human-readable serialization format that can be edited using any text editor. You can learn more about RON here.

Different Kinds of Meshes

The nani_meshes.ron file registers meshes together with their attributes. Meshes are grouped into subsets containing meshes that share the same attribute structure.

Subsets can also add or remove attributes. Below is an example of the SolidVertexColor subset, one of the most common subsets used for basic decorations and clutter.

subset: SolidVertexColor, # (1)!

    attribs: (
        remove: ["soft_normal", "Vertex_UV"], # (2)!
        add: [
            (name: "flags", ty: I32), # (3)!
        ],
    ),

    meshes: [ # (4)!
        (name: "clutter/plant_pot_v1"),
        ...
    ]
  1. The name of the subset.
  2. Attributes that are removed. Even if these attributes are present in the mesh JSON file, their values are ignored when the mesh is loaded.
  3. Attributes added to the mesh. The purpose of some added attributes is not yet fully understood.
  4. The list of mesh files in the subset, without their file extensions.

Danger

When modifying a mesh, make sure it retains all required attributes. If a required attribute is missing when the game loads the mesh, the game may crash.

Some meshes, such as tree meshes, are not included in this list because they are loaded through prefabs.

Anatomy of a JSON Mesh

Structure of a Mesh File

Built-in meshes using Tiny Glade's legacy/internal mesh format are stored as JSON files, with each file defining a 3D object.

JSON files are plain text and can be opened in editors such as Visual Studio Code or Notepad++.

The attributes array lists the attributes contained in the mesh file.

Each attribute generally contains a type and a buffer:

"type": [
    "int", # (1)!
    1 # (2)!
],
"buffer": [ # (3)!
    ...
]
  1. The data type stored in the buffer, commonly int or float.
  2. The number of components in each value. For example, a value of 3 indicates a three-component vector.
  3. The actual values are stored in the buffer property.

A simplified mesh file looks like this:

{"attributes": [
    "Vertex_Position", # (1)!
    "Vertex_Normal", # (2)!
    "Vertex_Color", # (3)!
    "Vertex_UV" # (4)!
    ],
    "indices": { # (5)!
        "type": [
            "int",
            1
        ],
        "buffer": [
            7,
            6,
            5,
            ...
        ]
    },
    "Vertex_Position": { # (1)!
        "type": [
            "float",
            3
        ],
        "buffer": [
            [
                0.33000001311302185,
                0.0,
                0.0
            ]
            ...
        ]
    },
    "Vertex_Normal": { # (2)!
        "type": [
            "float",
            3
        ],
        "buffer": [
            [
                0.0,
                1.0,
                0.0
            ]
            ...
        ]
    },
    "Vertex_Color": { # (3)!
        "type": [
            "float",
            3
        ],
        "buffer": [
            [
                0.1463320553302765,
                0.2409999966621399,
                0.12218699604272842
            ]
            ...
        ]
    },
    "Vertex_UV": { # (4)!
        "type": [
            "float",
            2
        ],
        "buffer": [
            [
                0.5,
                0.5
            ]...
        ]
    }
}

The main components are:

  1. Vertex_Position stores the position of each vertex in 3D space. Each position is a three-component vector containing floating-point values.

  2. Vertex_Normal stores the normal direction of each vertex.

  3. Vertex_Color stores the RGB colour associated with each vertex.

  4. Vertex_UV stores the 2D texture coordinates associated with each vertex and is used by some meshes for texture mapping.

  5. indices defines the faces of the mesh. Each integer refers to a vertex index, and the values are interpreted in groups of three. Each group of three indices defines one triangle.

Unlike Vertex_Position, indices are stored as an array of integers, rather than as three-component vectors.

Mesh vertices and faces

About Vectors

Vectors in Tiny Glade use a coordinate system in which:

  • Y points upward.
  • X runs horizontally.

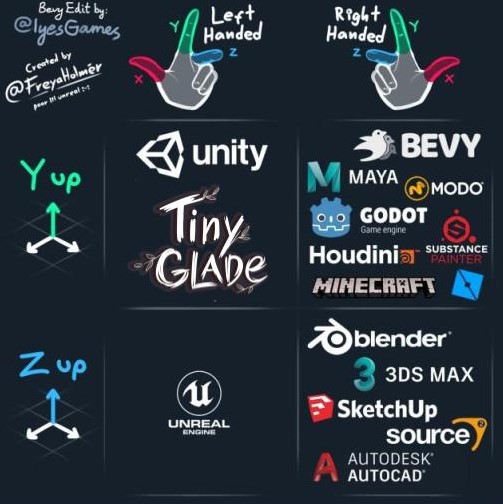

Coordinate axis comparison
Coordinate system comparison across different software.

Vertex Colours

Many built-in JSON meshes do not use conventional image textures. Instead, colour information is stored directly on each vertex.

Each entry in the Vertex_Color array corresponds to a vertex at the same position in the Vertex_Position array.

Colours are represented as three floating-point components ranging from 0.0 to 1.0, corresponding to the red, green, and blue channels.

For example:

[0.2, 0.2, 0.18039216101169586]

Each vertex must have a corresponding colour entry. The Vertex_Color array must therefore contain the same number of entries as the Vertex_Position array. If these sizes differ, the game may crash during loading.

Note

The specific error message can be documented here once confirmed.

RGB Colour Basics

RGB stands for red, green, and blue.

In conventional 8-bit RGB notation, each channel has a value from 0 to 255:

  • 0 means no intensity for that channel.
  • 255 means full intensity.

Hexadecimal colours are commonly written as #RRGGBB, where:

  • RR represents red.
  • GG represents green.
  • BB represents blue.

Examples:

  • #FF0000 = red (255, 0, 0)
  • #00FF00 = green (0, 255, 0)
  • #0000FF = blue (0, 0, 255)
  • #FFFFFF = white (255, 255, 255)
  • #000000 = black (0, 0, 0)
  • #FFFF00 = yellow (255, 255, 0)

Tiny Glade Colour Format

Tiny Glade uses the same RGB concept, but stores colour components as floating-point values between 0 and 1 rather than integers between 0 and 255.

For example:

  • [1.0, 0.0, 0.0] = red
  • [0.0, 1.0, 0.0] = green
  • [0.0, 0.0, 1.0] = blue

Tip

ColorHexa can be used to convert between hexadecimal colours and RGB values.

Color.js sRGB Linear can be used to obtain linear-sRGB values that may more closely match in-game colours.

Importing JSON Meshes into Blender

Reading large arrays of vectors directly from a JSON file can be difficult.

A Blender add-on has been created to import and export Tiny Glade's built-in JSON mesh format.

You can download the add-on from the TinyGlade Blender Add-On releases page.

For usage instructions, see Editing Meshes with Blender.

Note

This add-on is intended for the JSON mesh format described on this page. New clutter created through Tiny Glade's official modding support uses .glb files and follows a separate workflow.
